BAU Elegant 115

Elegant 115 Data Sheet

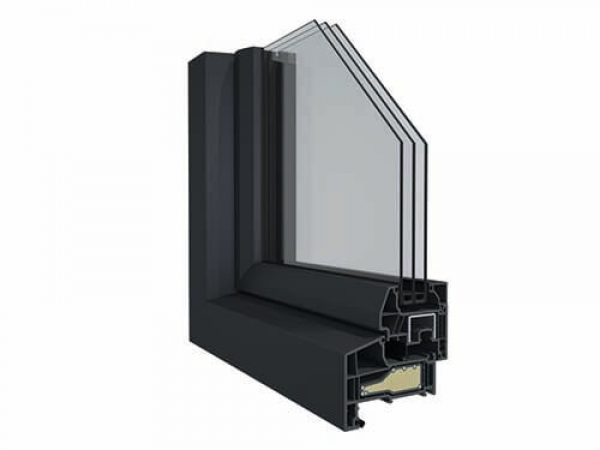

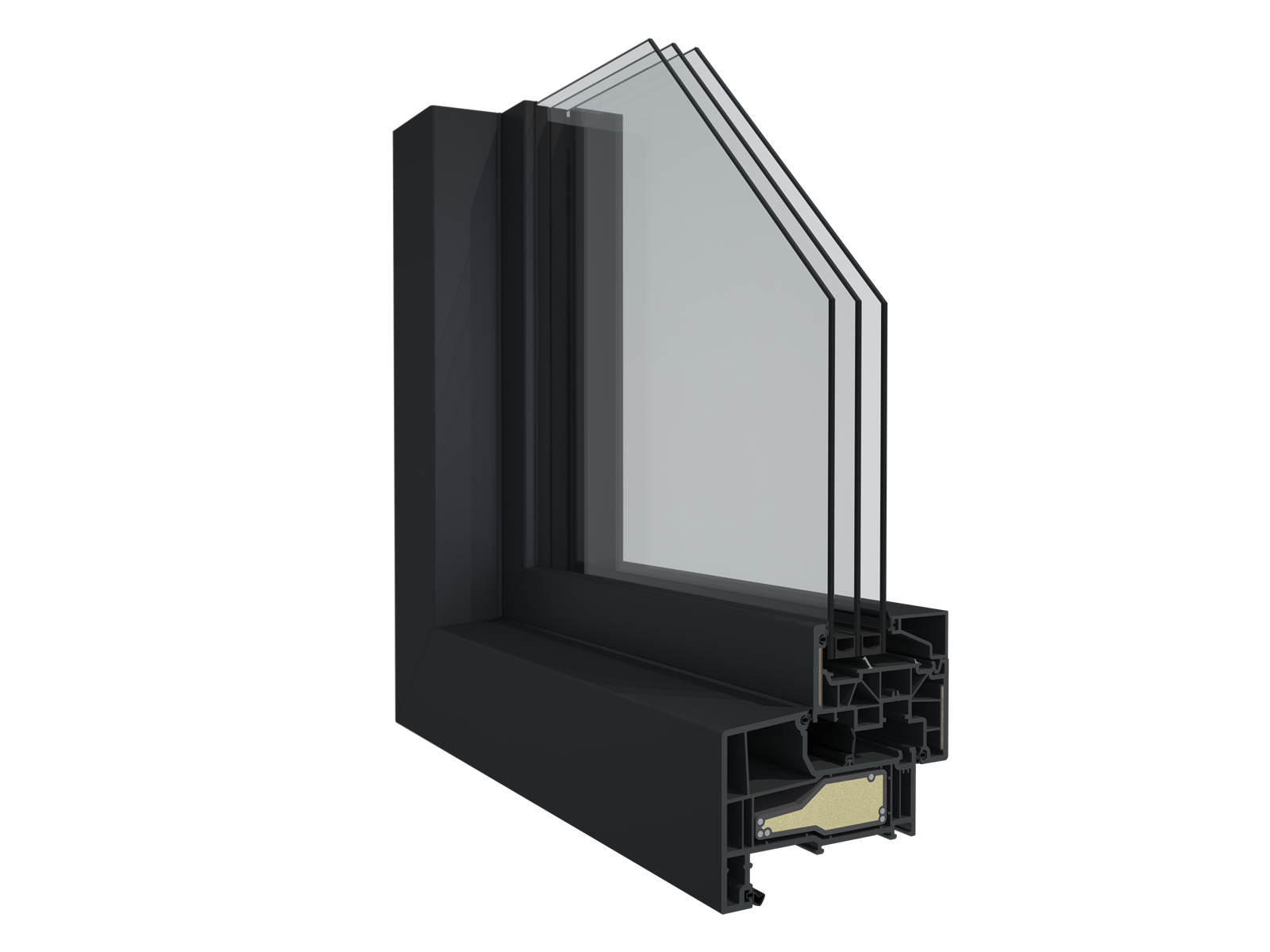

Window system Elegant 115 /For the Dutch market

Elegantly combine stylish architecture with modern technology. The Elegant 115 system is perfectly suited to the architecture of Dutch building façades and has an impressively slim profile view. A semi-offset sash emphasises the classical appearance and the choice of 50 colours also opens up a wide range of configuration options.
The frame has an overall mounting depth of 115 mm and an incline of 5° or 15°. The inclined sash further enhances the retro look. Our extensive palette of 50 decors and colours offers a wide range of configuration options.

The profile achieves excellent thermal insulation thanks to its modern five-chamber technology which enables lasting savings on costs and energy. Of course, there are also matching front doors for the Elegant 115 system, so you can enjoy not only a harmonious and inviting entrance area, but also maximum security.

Technical Specifications

• 115 mm system, 5 chambers
• Insulation value of the entire window Uw up to 0.79 W/m2K / with ThermoFibra up to 0.70 W/m2K
• Offset and semi-offset sash
• Glazing up to 55 mm
• All-round sash rebate gasket + co-weldable centre seal in the frame
• Soundproofing up to 44 dB (noise protection class 4)
• 50 different foil colours
• Three different base body colours available: white (003), beige (096) and grey (934)

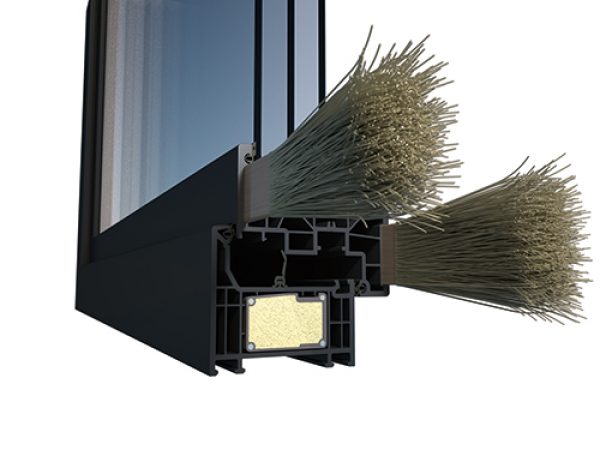

New technology with ThermoFibra

Would you like the ultimate combination of technology and design? ThermoFibra reinforces doors with embedded continuous glass fibre strands, which provide enormous stability while enabling the highest thermal insulation values. Steel reinforcement is no longer necessary and the weight of the window can be significantly reduced. ThermoFibra windows and doors can be also be completely recycled.
In combination with the thermal Forthex frame, we regard Elegant ThermoFibra as the best solution on the market for steel-free doors. In addition, they can be completely recycled at

Color Options
