ELEGANT WINDOW SYSTEM

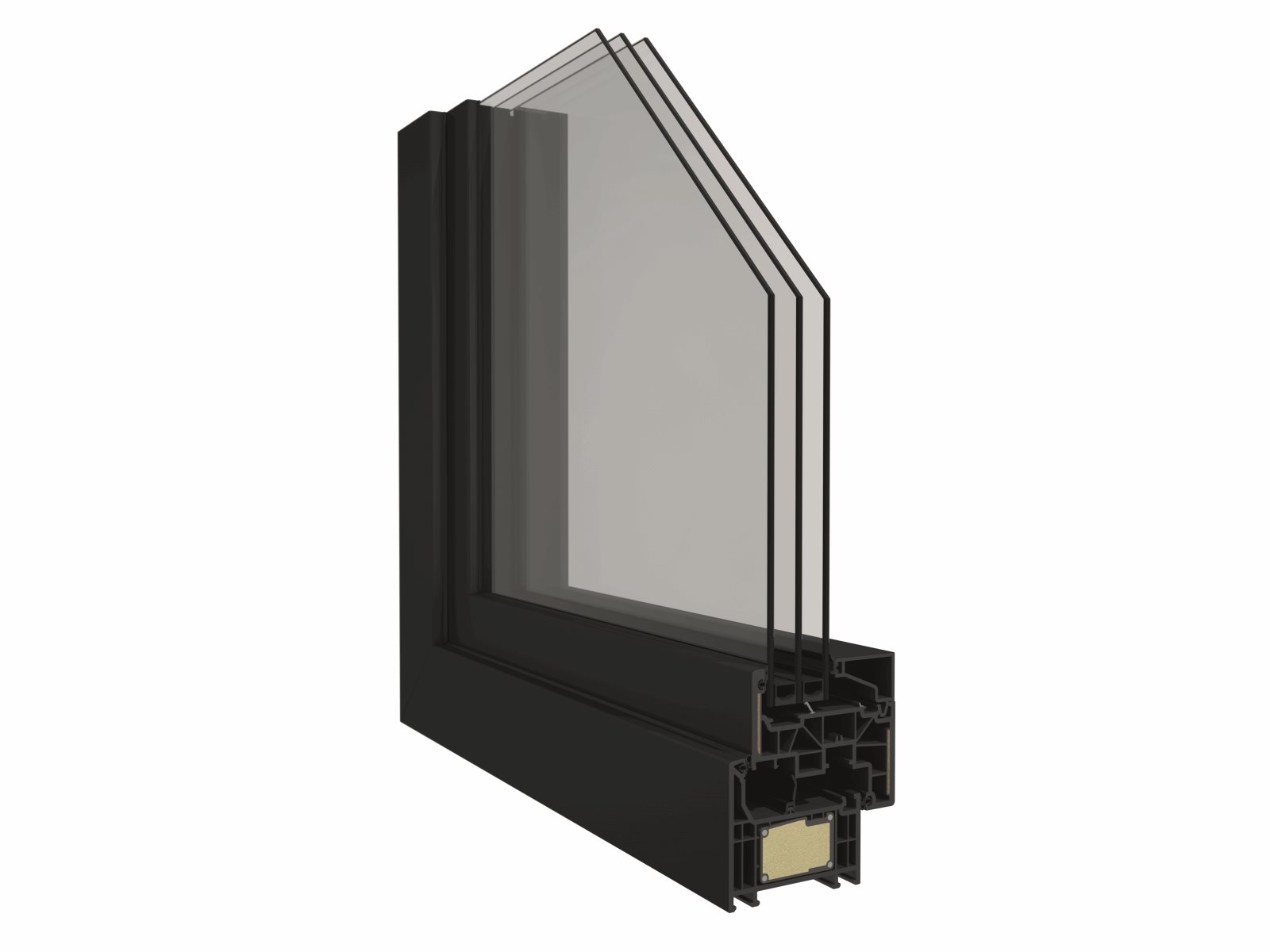

Superior technology with a pioneering design The Elegant profile system has outstanding performance characteristics.A first-rate thermal insulation value Uf of 0.93 w/m2k and a low profile depth of just 76 mm guarantee maximum flexibility in new buildings and renovations. The environmentally-friendly recycled material EcoPowerCore is used in the manufacturing process. As a result, Elegant also sets new benchmarks in the area of sustainability. With its narrow, slimline appearance, combined with a cubic, angular glazing bead system, Elegant is a completely new generation of designer window. From a visual aspect, Elegant and aluminium windows virtually look the same – both give houses a stylish, elegant, modern look. For this reason, the system is a practical, ecological alternative to aluminium windows.

Technical Specifications

• 76 mm system, 6 chambers
• Frame insulation value: Uf value of 0.93 W/m²K
• Insulation value for the entire window Uw up to 0.63 W/m²K
• Passive house standard can be achieved effectively with normal triple glazing
• Glazing up to 70 mm for very thick thermal insulation glazing or soundproof glazing
• 2 different sash designs • Burglary protection to class RC2 • Single-foot glazing beads for single glazing
• Maximum element sizes with special adhesive technology
• Soundproofing to noise protection class 5
• 40 different foil colours Color Options

Color Options
