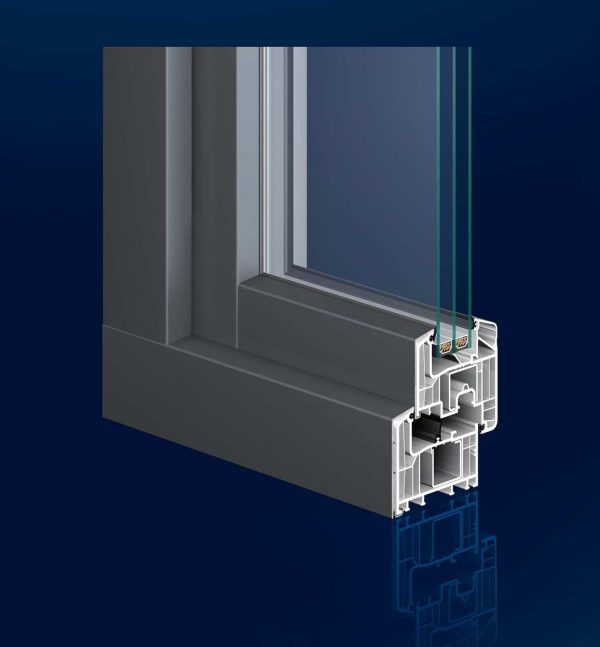

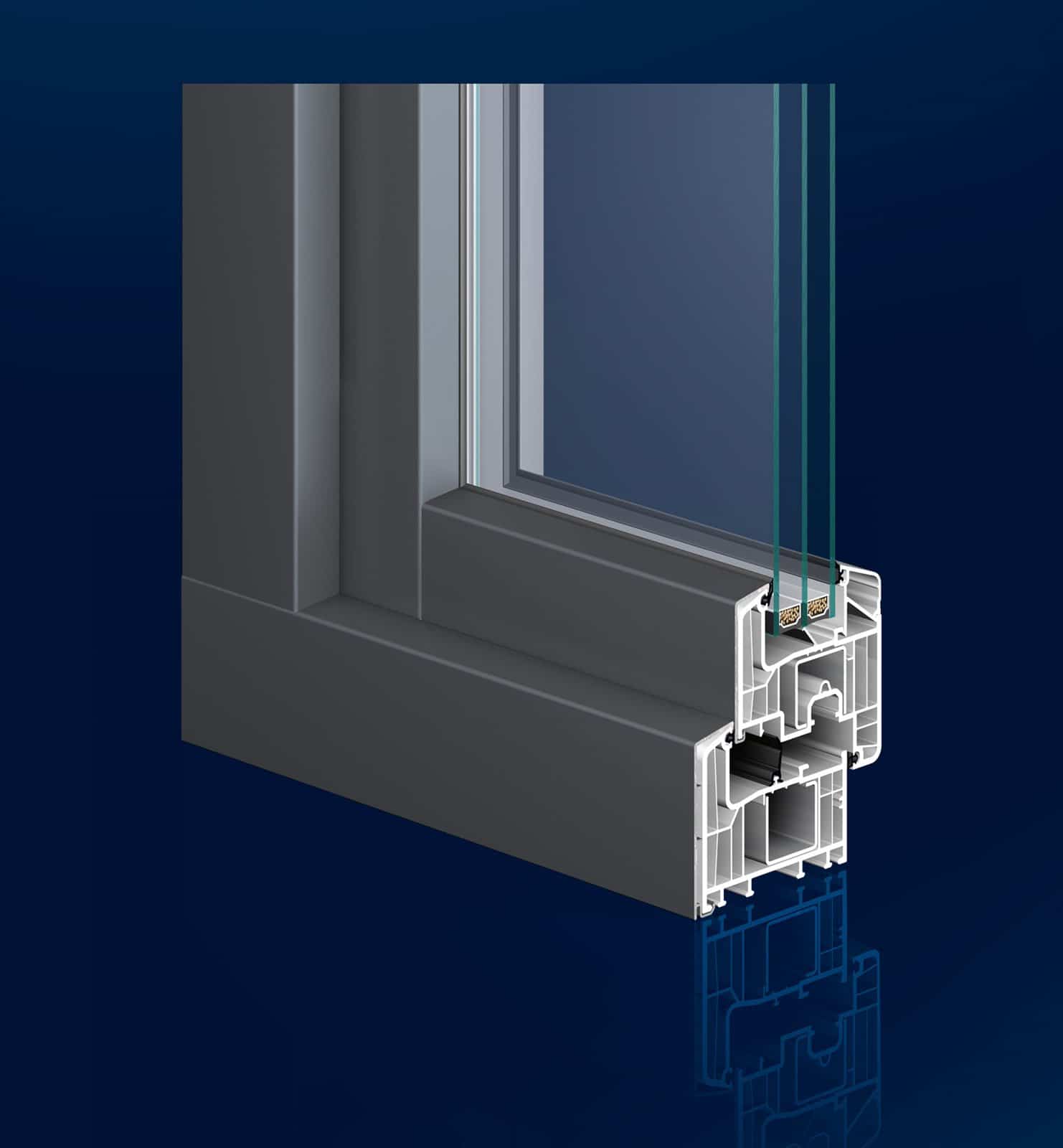

Window profile system Eforte

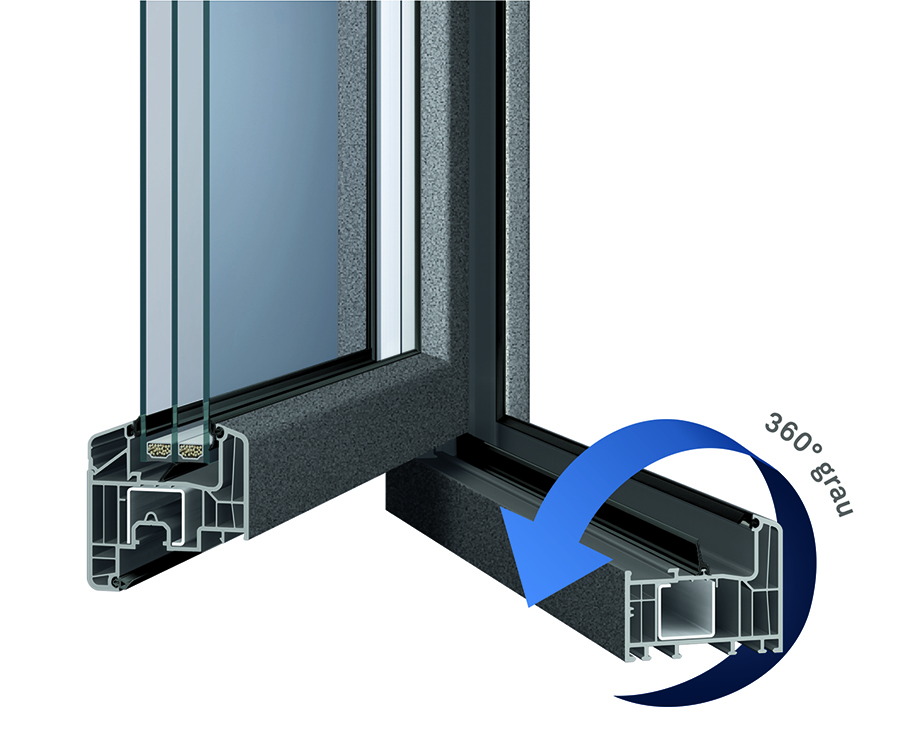

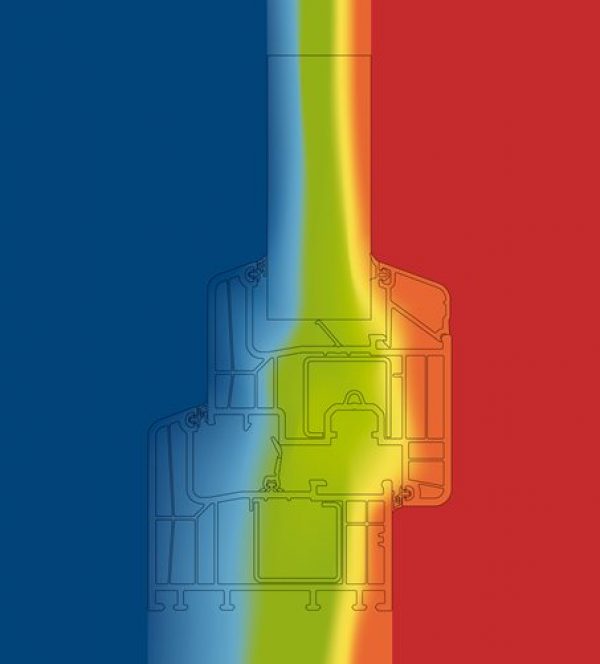

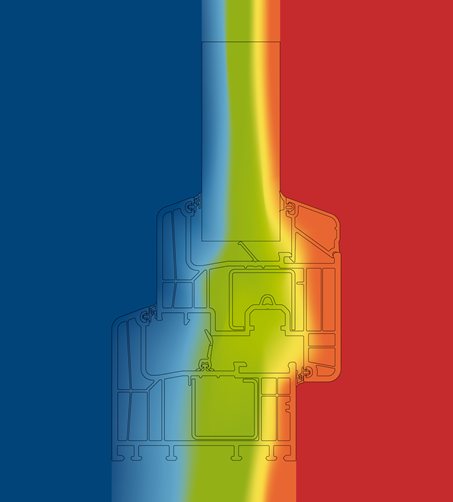

Uncompromisingly top class for energy-efficient living With the Eforte profile system, we attach special importance to modern thermal insulation because efficient energy saving is one of the most important challenges of today. With a mounting depth of 84 mm, Eforte achieves an outstanding Uf value of 0.95 W/m²K with ordinary steel reinforcing and without additional insulation measures. In addition to the usual gaskets, an innovative gasket in the glass rebate provides even better insulation. Special glazing for particularly thick safety glass or soundproof glazing are available up to 56 mm. A wide choice of colours and decors covers all design requirements. The intelligent concept behind the Eforte profile means that it can be used in both old and new buildings. It goes without saying that the right front door is also available to match your Eforte windows. Maximum thermal insulation for maximum energy saving The Eforte energy-efficient window with a mounting depth of 84 mm and 6 chambers achieves an outstanding Uf-value of 0.95 W/m²K. The current requirements set out in the Energy Saving Regulation and the values required for entitlement to KfW financial support (German Reconstruction Loan Corporation) are met with ease. The passive house standard (Uw ≤ 0.8 W/m²K) can also be implemented cost effectively with standard triple glazing. Eforte is the only system without additional insulation to be certified as a passive house suitable component by the internationally renowned ift Testing Institute.
Technical specifications

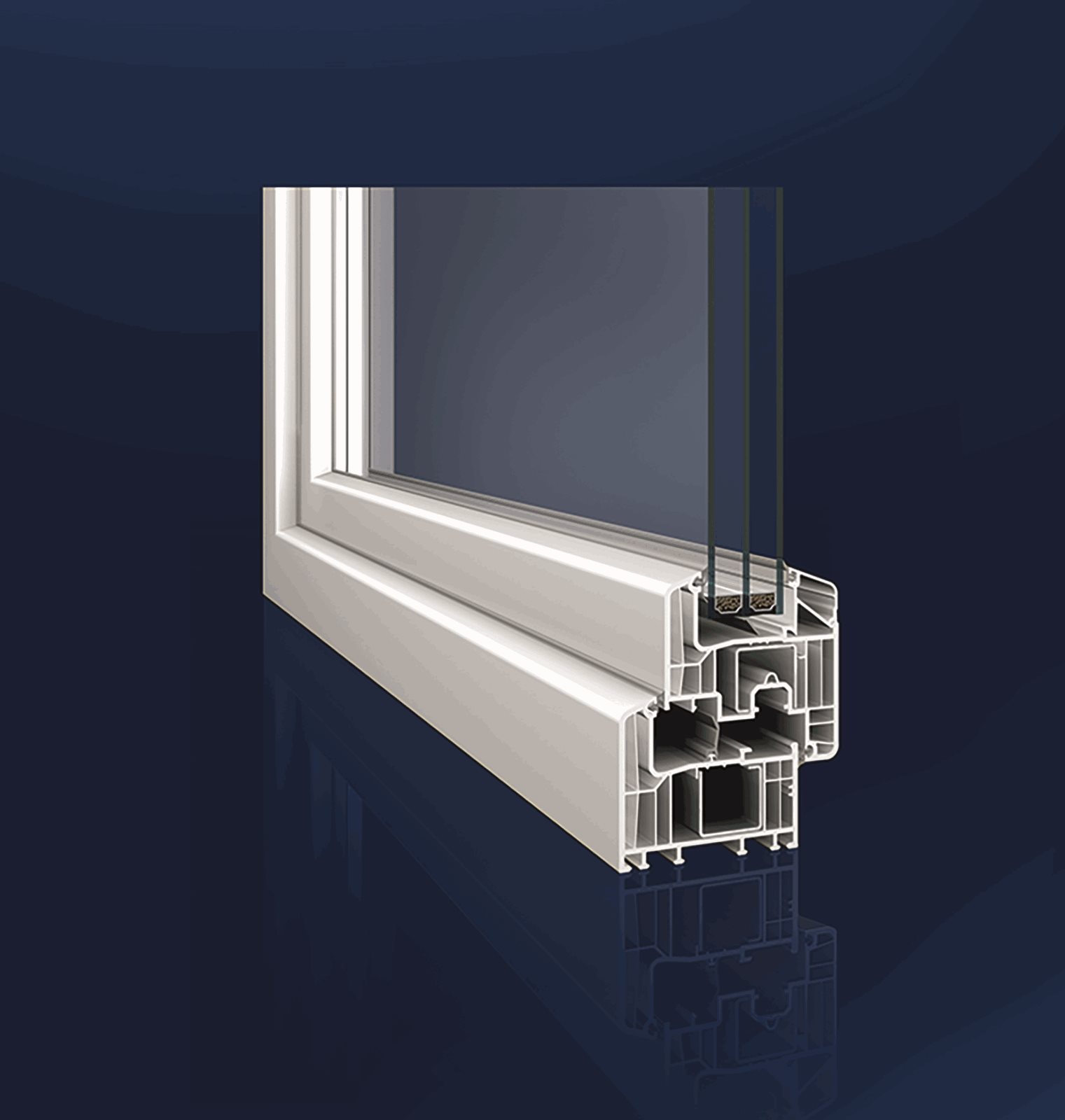

• 84 mm system, 6 chambers
• Frame insulation value Uf = 0.95 W/m²K
• Insulation values of the overall window Uw up to 0.64 W/m²K
• Passive house standard using conventional triple glazing.
• Passive house standard certified by internationally renowned Testing Institute in Rosenheim (ift)
• Accommodates a glazing thickness of up to 56 mm for special thermal insulation and soundproofing
• 2 different sash designs available
• New additional gasket in the glass rebate for even better thermal insulation
• Inner 2-foot glazing bead for enhanced burglary protection
• Glass rebate height of 25 mm for avoidance of condensation
• A special bonding technology enables floor-to-ceiling elements of up to 2.60 m in height
• Soundproofing up to 47 dB (noise protection class 5)
• Slender profile with narrow cross section of 120 mm and bevels of 20° for good water runoff
• 40 different laminated foil colours and an unlimited choice of colours with aluminium cladding Color Options
