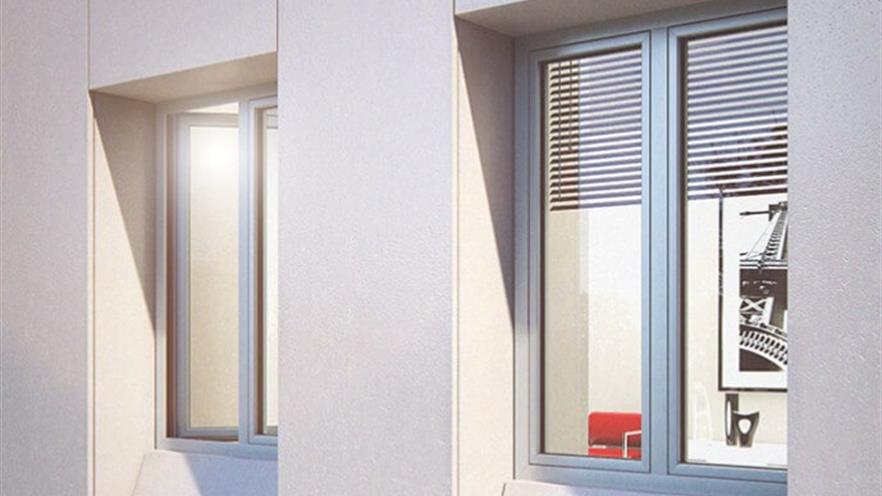

Hinged insulated system BM-9660

Description

BM-9660 is an insulated Tilt & Turn system for areas with warmer climate, ensuring high quality constructions and application of various typologies with considerable thermal performance. It is ideal for renovations, combining safety and functionality, without requiring high investment costs.

Advantages

Very good value for money
High energy savings due to the high energy efficiency of the system
Increased level of security
High level of sound insulation
Ease of use and high functionality
Modern design for windows either with flat or curved line
High quality with certified performances
Increased static loads and functionality in case of severe weather conditions
Entrance doors with ease of access according to specifications for people with special needs
Special solutions for Hotels
Variety of alternative solutions
Flexibility in construction

Generic

WINDOWS TYPES	THERMAL INSULATION	EXTERIOR SHAPES
Hinged	Yes	Classic, Curved, Flat

Technical Characteristics

FRAME DEPTH	SASH DEPTH	SASH WEIGHT	MINIMUM VISIBLE ALUMINIUM FACE HEIGHT	MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE)	GLAZING TYPE	MAXIMUM GLAZING THICKNESS	SEALING METHOD	MINIMUM THRESHOLD HEIGHT	TYPE OF THERMAL INSULATION
56 mm	63,5 mm	up to 180 Kg	82 mm	61 mm	Double – Triple	from 20 up to 49 mm	Perimetrical at 3 levels with EPDM gaskets	15 mm	Polyamides 24 mm, PE insulation Foam
